A Summary and Overview of the Dr.UGraft ™ System Components

By June 28, 2019 No Comments

When you purchase the Dr.UGraft ™ system, the components arrive in a travel-convenient, portable suitcase. They include:

  • Dr.UGraft ™ Revolution Console
  • Dr.UGraft ™ Nurture hand piece
  • Dr.UGraft ™ foot pedal
  • power cord with two different power options, 110 volts (Americas) and 220 volts for Europe and other nations
  • instructional manual

The basic components of the Dr.UGraft hair transplant system, featuring the console, hand piece, foot pedal, power cord and instructional guide

The Dr.UGraft system components featuring the console, hand piece, foot pedal, power cord and instructional guide

Additionally, the Dr.UGraft ™ system components also arrives with the following consumable items:

  • physiologic fluid bag
  • Dr.UGraft ™ tubing system
  • Dr.UGraft ™ intelligent punch

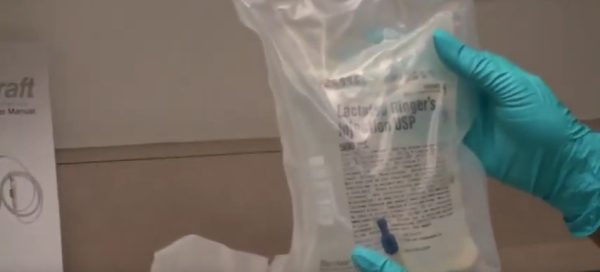

An off-the-shelf physiologic fluid bag is needed for the Dr.UGraft fluid system

An off-the-shelf physiologic fluid bag is needed for the Dr.UGraft fluid system

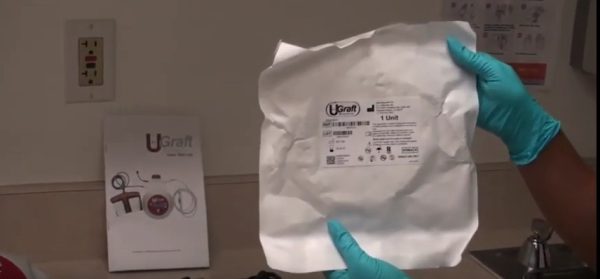

The Dr.UGraft tubing system connects the fluid bag to the console, establishing the fluid component of the overall hair transplant punch system

The Dr.UGraft tubing system connects the fluid bag to the console, establishing the fluid component of the overall hair transplant punch system

What the Dr.UGraft flared, hybrid punch looks like when attached to the Nurture hand piece.

What the Dr.UGraft flared, hybrid punch looks like when attached to the Nurture hand piece.

Basic Features and Functions of Individual Dr.UGraft ™ System Components

Before attempting to put the Dr.UGraft ™ system components together, it is helpful to understand the basic function and role of each item.

The Dr.UGraft ™ Revolution console encases the computer system which controls the foot pedal and handpiece.

The Dr.UGraft ™ Nurture hand piece powers and operates the patented flared hybrid punch. The fluid tube connects to an entrance port on the side which directs hydration to the grafts during the scoring phase and also to eject any grafts which may have been impacted inside the punch.

The Dr.UGraft ™ foot pedal consists of a left pedal and a right pedal. The left pedal controls the Dr.UGraft ™ nurture hand piece. The right pedal operates the graft ejection functionality in a quick and safe, hands-free manner, giving practitioners the freedom to continue onward with the procedure in a smooth, uninterrupted fashion, without having to sacrifice grafts with forceps.

The Dr.UGraft ™ power cord comes with two adaptor types

  1. 110 volts (for the Americas)
  2. 220 volts (for Europe and other countries which use the electrical grid system)

The included user manual describes how to set up, operate and troubleshoot the system.

Here is a summary of the three consumable components needed to operate the Dr.UGraft ™ system.

1. The physiologic fluid bag is an off-the-shelf product, the same item used to administer IV fluid. There is nothing unique or special about it.

2. The Dr.UGraft ™ tubing system arrives already sterilized and package-sealed. Be sure that the package is unbroken. Otherwise, it should not be used. The tubing connects the physiologic fluid bag to the Dr.UGraft ™ Nurture handpiece through a fluid port on the side.

3. The Dr.UGraft ™ intelligent punch has a distinct flared, hybrid conical shape. The flaring works to correct punch misalignment, punch misangulation and also to prevent torsion. Additionally, the conical aspect of this shape provides intuitive depth-control, stopping the punch at the precise point, preventing it from advancing any further.

The Dr.UGraft ™ flared, hybrid punch is optimized to work seamlessly together with the Dr.UGraft ™ Nurture hand piece to consistently extract viable in-tact grafts for all hair types (e.g. straight, wavy, curly, Afro-textured) and all donor areas (e.g. scalp, nape, beard, chest, abdomen, legs.

Video: Dr.UGraft System Components

To see these concepts in real life, representing the different parts of the Dr.UGraft  system, watch this video.

What’s Next

Now that you are familiar with the different Dr.UGraft ™ system components and what they do, learn how to sterilize the hand piece and punch for the first time.

Access the complete instructional guide here.
